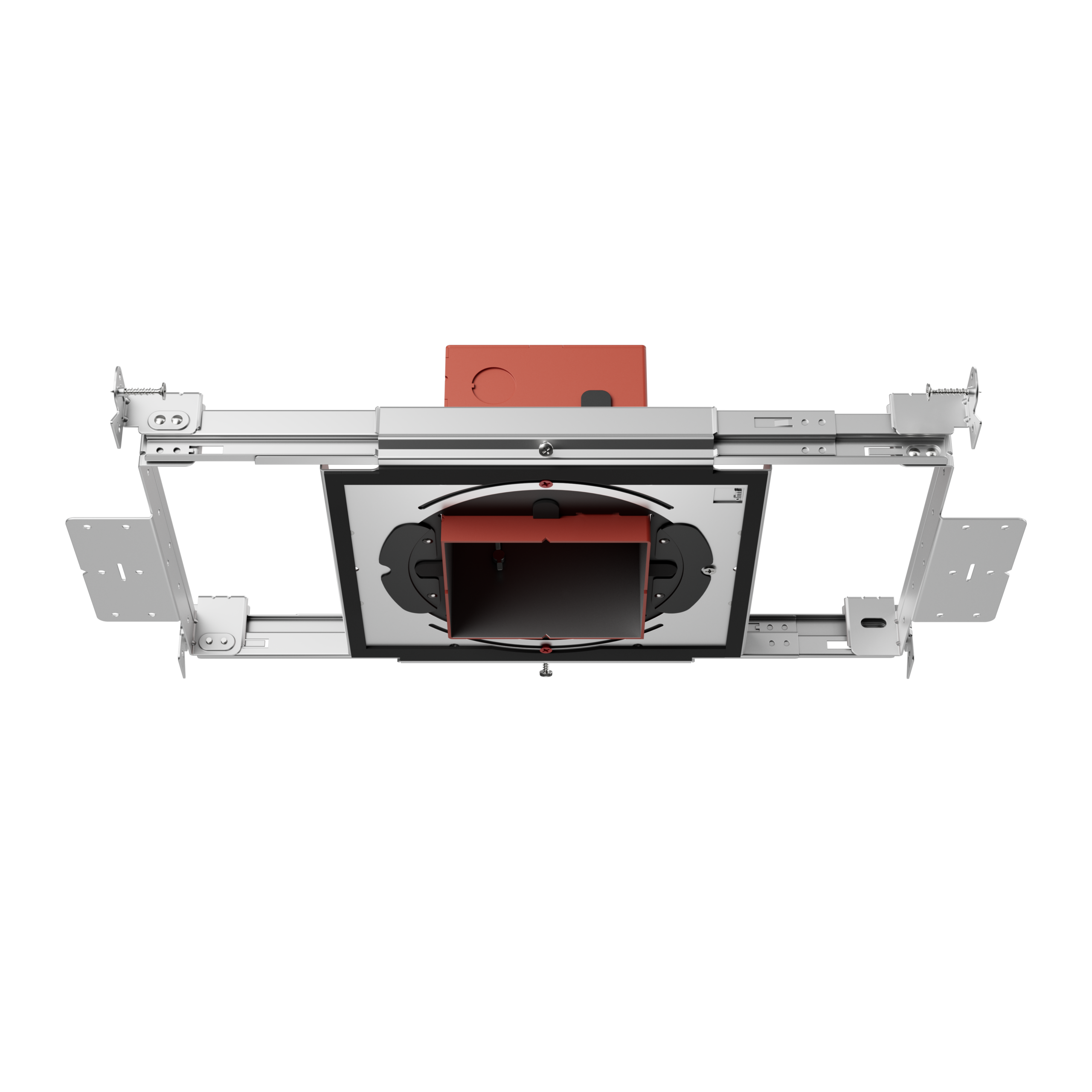

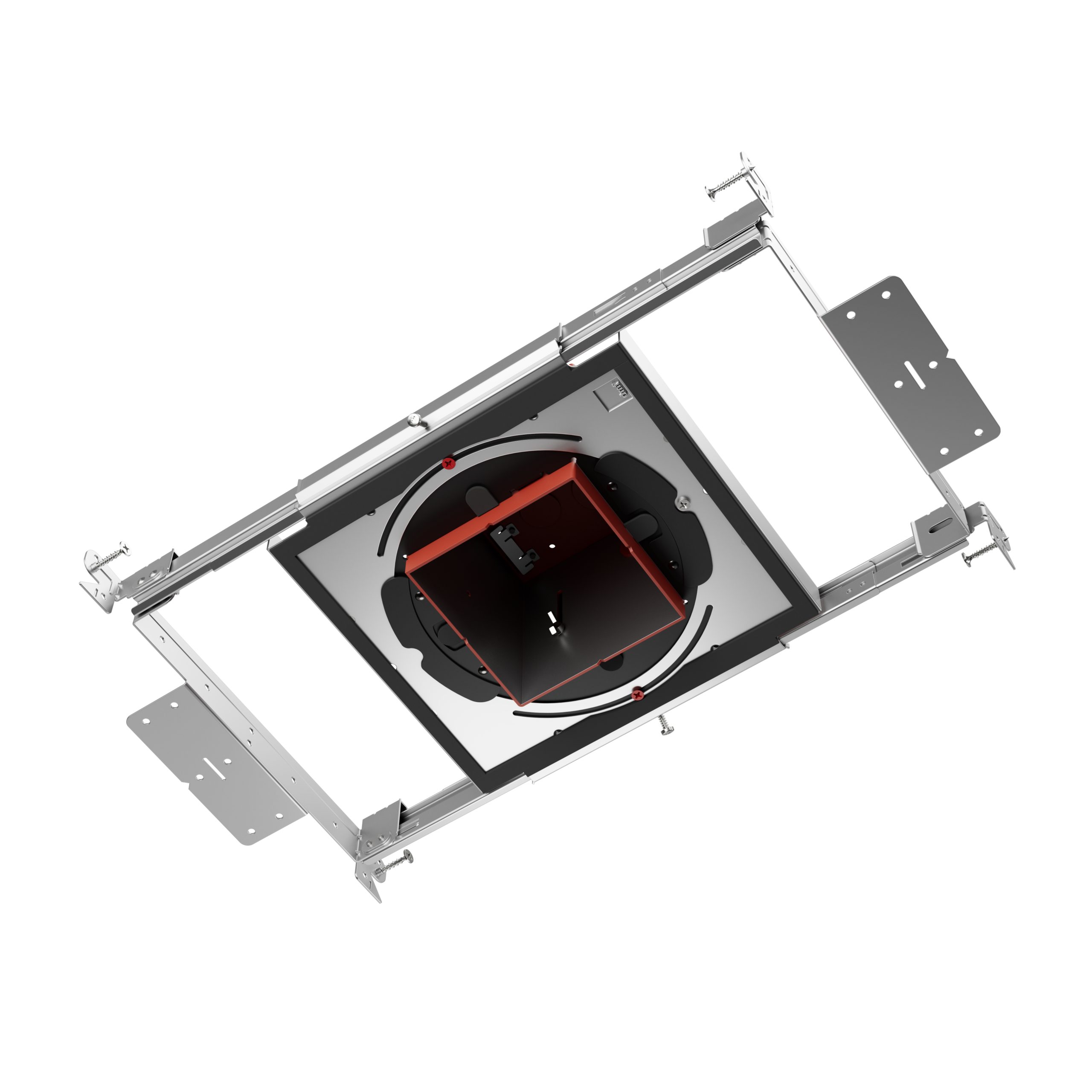

M Series Housing
Features: Recessed, Patented Bar Hangers
Compatibility: DRD Series Modules and M Series Residential Square Trims
Installation: New Construction
Ratings: Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC
Warranty: 5 year
Precision installation, now made faster and simpler
Adjusts up and down and side to side with 90 degrees of rotation and lateral translation for perfectly straight and perfectly aligned square downlights.
Drastically smaller than the competition allowing for installation in physically restrictive environments.
Features a host of rating options, including Fire, STC/IIC Sound, and Chicago Plenum, to comply with almost any building code.
Features: Recessed, Patented Bar Hangers
Ratings: Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC
Features: Emergency, Recessed, Patented Bar Hangers
Ratings: Fire Rated, STC/IIC Sound Rated, IC
Features: Recessed, Concrete Tight
Ratings: Concrete Tight
Features : Brightness Switch, Natural Warm Dim
Lumens : 350 lm (5W), 750 lm (9W), 950 lm (12W)
Color Temperature : Natural Warm Dim 3000-2200K
Beam Spread : Flood
Dimming : TRIAC/ELV 5%
Ratings : Energy Star, Title 24 JA8, Declare Listed, Wet Location, IC
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: X Series Downlight Modules and Round Housings
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: DRD Series Modules and M Series Residential Square Housings
Features: Recessed
Ratings: IC, ASTM E283 Air Tight, Chicago Plenum
Features: Adjustable, Field Changeable Optics, Integrated Driver, Warm Dim, Tunable White
Lumens: 500 lm (12.5W) – Coming soon, 750 lm (12.5W), 1000 lm (14.3W)
Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim 3000-1800K, Tunable White 4000-1800K, Tunable White 6500-2700K
Beam Spread:10° Ultra Narrow Spot, 20° Narrow Spot, 30° Spot, 40° Flood, 50° Wide Flood, 50°x 30° Linear Spread
Dimming:0-10V 1%, TRIAC/ELV 1%, DALI 1%
Ratings: Energy Star, Title 24 JA8, Damp Location
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: DRD Series Modules and M Series Residential Square Housings
