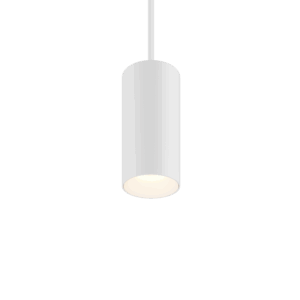

M Series Cylinder

4″ Cylinder (Formerly DCC)

Features: Surface Mount, Pendant, Wall Mount, Adjustable, Direct/Indirect, Warm Dim, Emergency

Size: 4 inch, 8 inch, 12 inch

Lumens: 750 lm (10W), 1000 lm (12W), 1250 lm (14W), 1500 lm (16.5W), 2000 lm (28W), 2500 lm (37W), 3000 lm (40W)

Color Quality: 90+ CRI, 2-step SDCM

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood, 60° Wide Flood, 90°+ General Ambient

Dimming: 0-10V 1%, TRIAC/ELV 1%, DALI-2 0.1%

Input: 120/277V

Trims: Round, Hyperbolic, Snoot, Decorative, Shade

Finish: White, Black, Bronze, Brushed Aluminum, Custom

Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky

Warranty: 5 year; 50,000 hours

resources

Spec Sheet
Custom Color Ordering Form
IES Files
Revit Files
Installation Instructions
Videos
  • Unmatched customization
  • Mix and match
  • Plug & play

By combining a suite of customizable features with our highest performing LED modules yet, the M Series Cylinder provides brilliant illumination and beautiful design versatile enough for whatever your project needs.

DRDM_Overview-1
DRDM_Overview-2
DRDM_Overview-3

Over a million configurations

Choose from a wide range of options to customize mounting, beam angles, lumen outputs, finishes, trim and shade options, uplighting, and more.

LED modules with integrated drivers can be swapped out without rewiring or an electrician.

Features: Surface Mount, Pendant, Wall Mount, Adjustable, Up/Down, Warm Dim, Emergency

Lumens: 750 lm (10W), 1000 lm (12W), 1250 lm (14W), 1500 lm (20W), 2000 lm (28W), 2500 lm (37W), 3000 lm (40W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Hyperbolic, Snoot, Decorative, Shade

Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky
