X Series

2” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White

Lumens (Downlight): 500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Lumens (Adjustable): 500 lm (12.5W), 750 lm (12.5W), 1000 lm (14.3W)

Color Quality: 93 CRI, 2-step SDCM

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Beam Spread: 10° Ultra Narrow Spot, 20° Narrow Spot, 30° Spot, 40° Flood, 50° Wide Flood, 50°x 30° Linear Spread

Dimming: 0-10V (1%), TRIAC/ELV (1%), DALI (0.1%)

Input: 120/277V

Installation: New Construction, Remodel, Wood/Millwork, Flangeless Mud-In

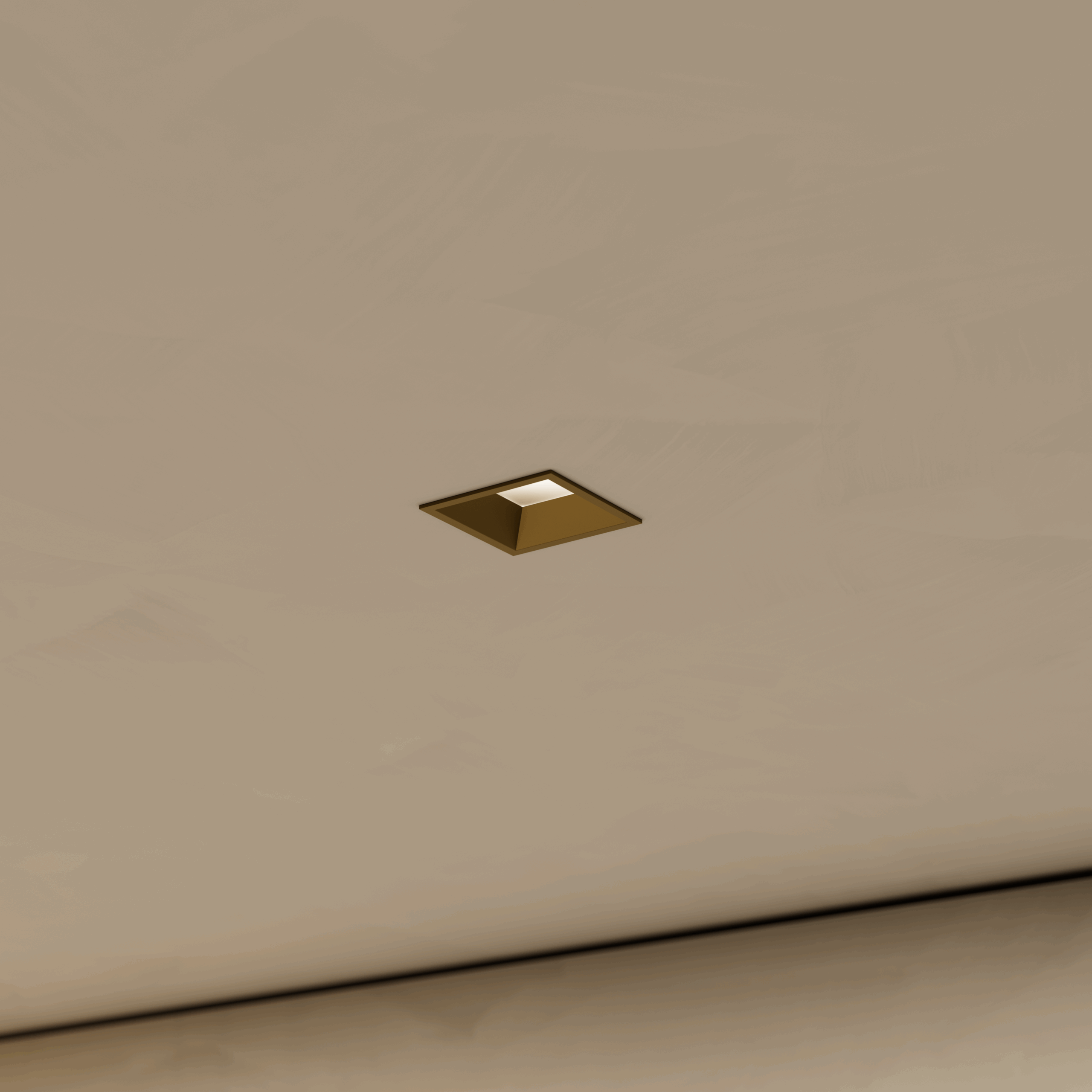

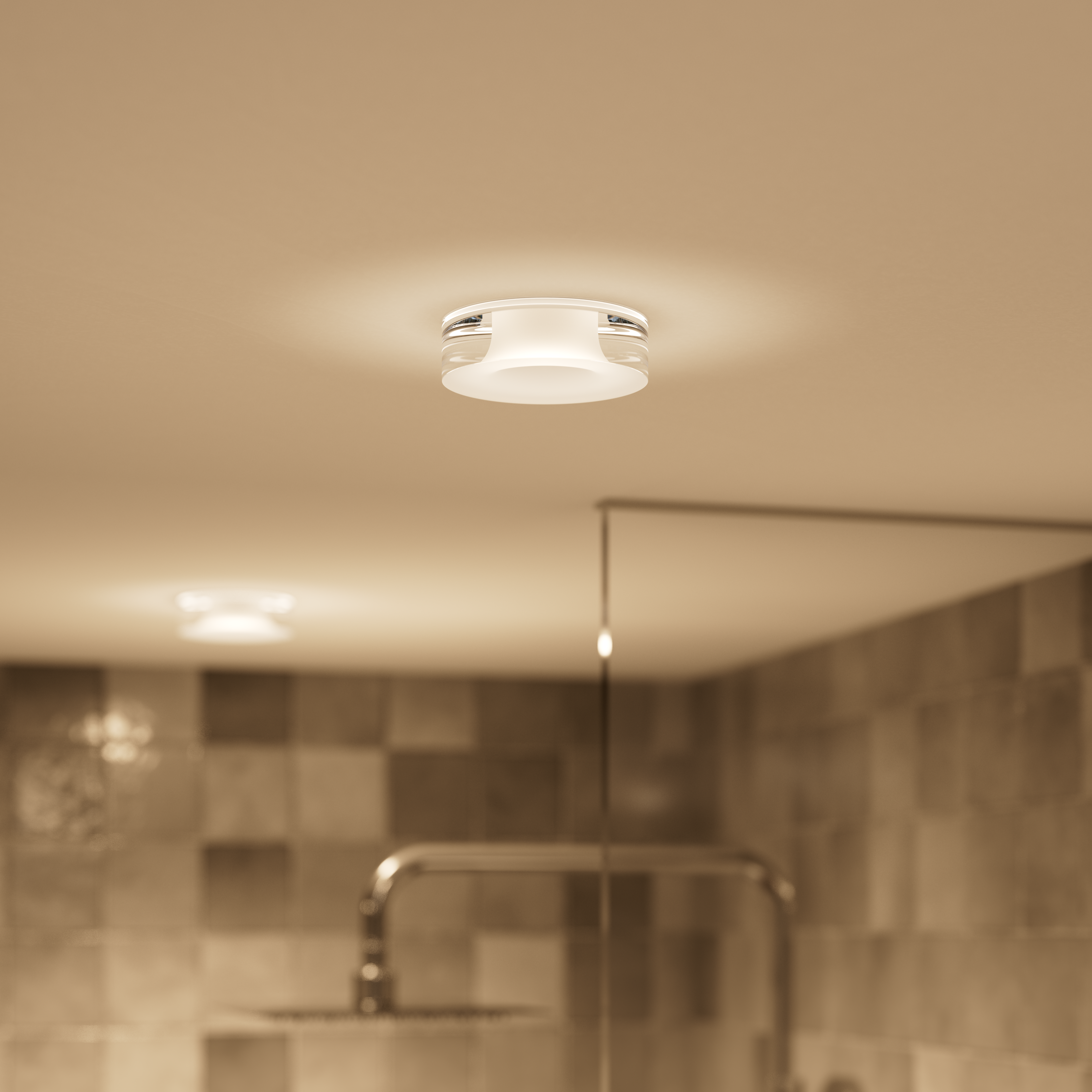

Trims: Round, Square, Wall Wash, Flangeless, Pinhole, Hyperbolic, Decorative

Finish: White, Black, Bronze, Clear Diffuse, Custom Color

Rating: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Chicago Plenum, IC

Warranty: 5 year; 50,000 hours

Go To Configurator

resources

Videos

Performance, distribution, and trim options that are field-changeable

Complete your lighting toolkit with a fully modular, small aperture lighting system with trims that create a consistent visual language when paired with DMF’s other lighting families.

Simple universal housing with New Construction, Chicago Plenum, and Remodel options

Compatible with ceiling thicknesses between 1/2″ and 1 1/4″, X Series features a smaller footprint housing and Precision Lock Collar that eliminates overcutting and ensures flush installation.

Integrated driver and splice are accessible below-the-ceiling

The housing features a service plate that drops the splice to ceiling plane. Just pull the service cord to gain access and snap it back into place. Integrated drivers designed into the module are standard across all DMF families.
