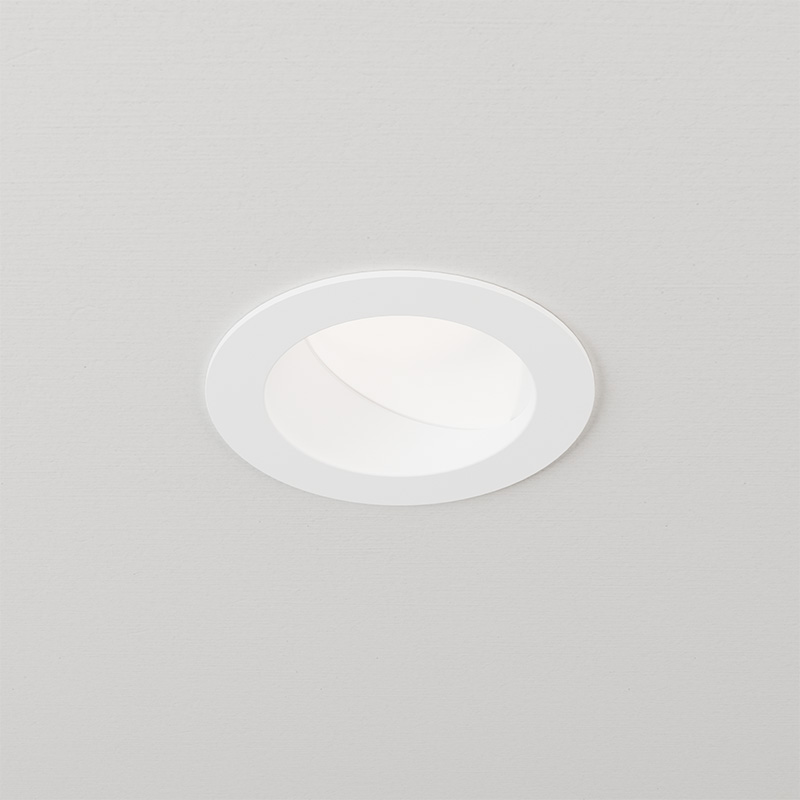

X Series Trim
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: X Series Downlight Modules and Round Housings
Finish: White, Black, Custom
Warranty: 5 year
Opitmized profile and diffuser creates an asymmetric output that evenly washes vertical surfaces.
Ultra thin flange and wider recess provide a crisp, minimal appearance without any additional installation labor.
Die-cast aluminum trims in a variety of finishes.
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: X Series Downlight Modules and Round Housings
Features: Adjustable, Field Changeable Optics, Integrated Driver, Warm Dim, Tunable White
Lumens: 500 lm (12.5W) – Coming soon, 750 lm (12.5W), 1000 lm (14.3W)
Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim 3000-1800K, Tunable White 4000-1800K, Tunable White 6500-2700K
Beam Spread:10° Ultra Narrow Spot, 20° Narrow Spot, 30° Spot, 40° Flood, 50° Wide Flood, 50°x 30° Linear Spread
Dimming:0-10V 1%, TRIAC/ELV 1%, DALI 1%
Ratings: Energy Star, Title 24 JA8, Damp Location
Features : Brightness Switch, Natural Warm Dim
Lumens : 350 lm (5W), 750 lm (9W), 950 lm (12W)
Color Temperature : Natural Warm Dim 3000-2200K
Beam Spread : Flood
Dimming : TRIAC/ELV 5%
Ratings : Energy Star, Title 24 JA8, Declare Listed, Wet Location, IC
Features: Recessed, Pop Out Spring Clips
Ratings: Fire Rated, STC/IIC Sound Rated, IC
Features: Recessed, Concrete Tight
Ratings: Concrete Tight
Features: Low Profile, Recessed, Patented Bar Hangers
Ratings: Fire Rated, STC/IIC Sound Rated, IC
Features : Adjustable, Field Changeable Optics, Integrated Driver
Lumens : 1500 lm (21W), 2000 lm (37W), 2500 lm (40W)
Color Temperature : 2700K, 3000K, 3500K, 4000K
Beam Spread : 15° Narrow Spot, 25° Spot, 40° Flood, 60° Wide Flood, Linear Spread
Dimming : 0-10V 1%, Lutron EcoSystem 1%
Ratings : Energy Star, Damp Location
Features: Integrated Test Switch, Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: DRD Series Modules and M Series Residential Round Housings
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: DRD Series Modules and M Series Residential Square Housings
