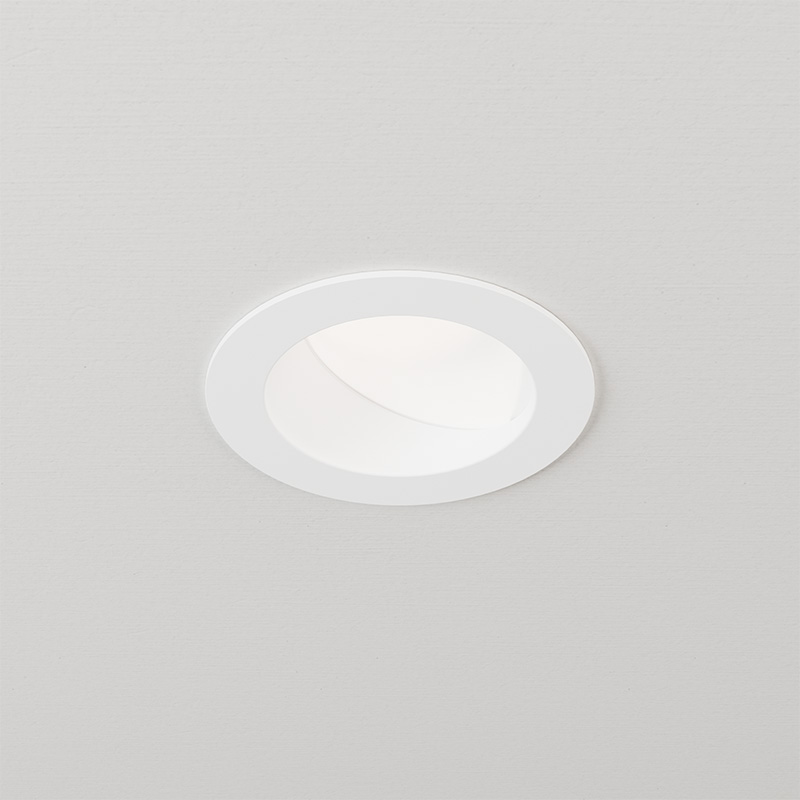

X Series Trim
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: X Series Downlight Modules and Round Housings
Installation: Flangeless Wood/Millwork, Flangeless Mud-In
Finish: White, Black, Custom
Warranty: 5 year
Opitmized profile and diffuser creates an asymmetric output that evenly washes vertical surfaces.
Pair with one of DMF’s installation kits (Wood/Millwork or Mud-in Plate) for the cleanest possible look.
Die-cast aluminum trims in a variety of finishes.
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: X Series Downlight Modules and Round Housings
Features: Precision-Crafted Aluminum, Twist & Lock Installation
Compatibility: X Series Downlight Modules and Round Housings
Features: Low Profile, Recessed, Patented Bar Hangers
Ratings: Fire Rated, STC/IIC Sound Rated, IC
Features: Multiple, Recessed, Patented Bar Hangers
Ratings: IC
Features: Adjustable, Field Changeable Optics, Integrated Driver, Warm Dim, Tunable White
Lumens: 500 lm (12.5W) – Coming soon, 750 lm (12.5W), 1000 lm (14.3W)
Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim 3000-1800K, Tunable White 4000-1800K, Tunable White 6500-2700K
Beam Spread:10° Ultra Narrow Spot, 20° Narrow Spot, 30° Spot, 40° Flood, 50° Wide Flood, 50°x 30° Linear Spread
Dimming:0-10V 1%, TRIAC/ELV 1%, DALI 1%
Ratings: Energy Star, Title 24 JA8, Damp Location
Features: Recessed
Ratings: IC, ASTM E283 Air Tight, Chicago Plenum
Features: Recessed, Pop Out Spring Clips
Ratings: Fire Rated, STC/IIC Sound Rated, IC
Features: Recessed, Patented Bar Hangers
Ratings: Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC
Features: Adjustable, Field Changeable Optics, Integrated Driver, Warm Dim, Tunable White
Lumens: 500 lm (12.5W) – Coming soon, 750 lm (12.5W), 1000 lm (14.3W)
Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim 3000-1800K, Tunable White 4000-1800K, Tunable White 6500-2700K
Beam Spread:10° Ultra Narrow Spot, 20° Narrow Spot, 30° Spot, 40° Flood, 50° Wide Flood, 50°x 30° Linear Spread
Dimming:0-10V 1%, TRIAC/ELV 1%, DALI 1%
Ratings: Energy Star, Title 24 JA8, Damp Location
